Stackable Battery High Voltage 51.2V Lifepo4 Battery 100ah Battery Cells for Home Energy Storage System
- Product Name
- 51.2V 100AH LifePO4 Battery Pack
- Model NO
- HES-DDS05
- Size
- 630*450*405mm
- Weight
- 48kg
- Battery Type
- Prismatic LiFePO4
- Application
- Wind Power Storage,Power Tools, Home Appliances,Consumer Electronics
- Moninal Capacity
- 100AH
- Moninal Voltage
- 51.2V
- Energy
- 5.12KWh
- Case Material
- Metal
- Commuication Interface
- RS485/CAN
- Enclosure Protection
- IP54
JHC-Tech Specialize in Battery Pack Power for Your Business.
Our Services:
We can design 12V 24V 36V 48V 100ah 200ah 300ah 400ah or other models !
Welcome customize shell,weight, size,MBS,technology,etc.
FEATURES:
1.Using the technology of LiFePO4 cell,superior safety,thousands of cycles,under normal conditions.
2.Built-in automatic protection of over-charge,over discharge,over current and over temperature.
3.Lighter Weight:About 40% of the weight or a comparable lead acid battery.
4.Higher Power:High Discharge rate and High Energy Capacity.
5.Wider Temperature Range:-20℃ to 60 ℃
|
Model |
HES-DDS05-100Ah |
HES-DDS05-200Ah |
HES-DDS05-300Ah |
HES-DDS05-400Ah |
|

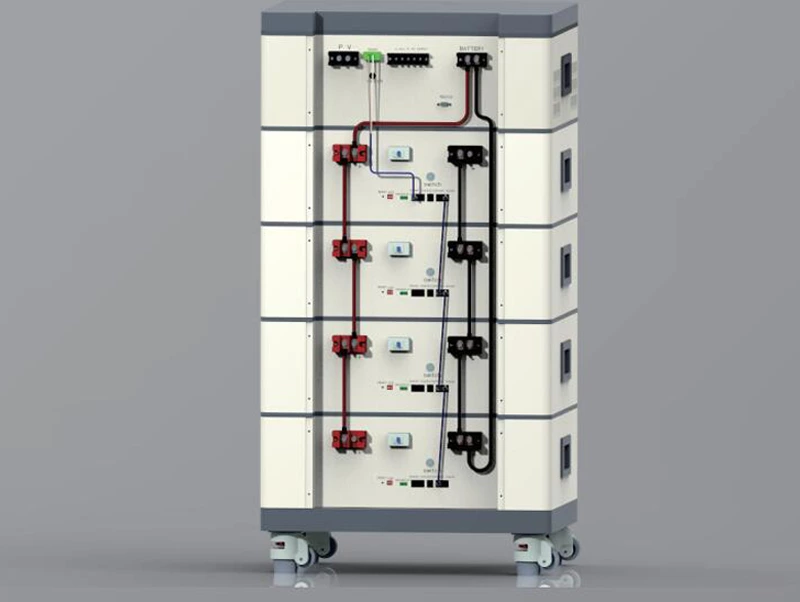

Stacked parallel |
1PCS |
2PCS |
3PCS |
4PCS |
|
Nominal Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
|
Nominal Capacity |
100Ah |
200Ah |
300Ah |
400Ah |
|
Energy |
5.12(KWh) |
10.24(KWh) |
15.36(KWh) |
24.48(KWh) |
|
Charge Cut-off Voltage |
58.4V |
|||
|
Discharge Cut-off Voltage |
41.6V |
|||
|
Charge Current |
100A |
|||
|
Discharge Current |
100A |
|||
|
Battery overlay dimensions |
630*450*405mm |
630*450*610mm |
630*450*815mm |
630*450*1020mm |
|
Packing Size |
Carton: 720*540*300mm( single battery pack) |
|||
|
Charge Operating Temperature |
0~45℃ |
|||
|
Discharge Operating Temperature |
-20~55℃ |
|||
|
Storage Temperature |
-10~55℃ |
|||
|
Overlay Net Weight |
45kg |
90kg |
135kg |
180kg |
|
Single Group Gross Weight |
48kg |
|||
|
Communication |
Internal communication |
Internal communication |
||
|

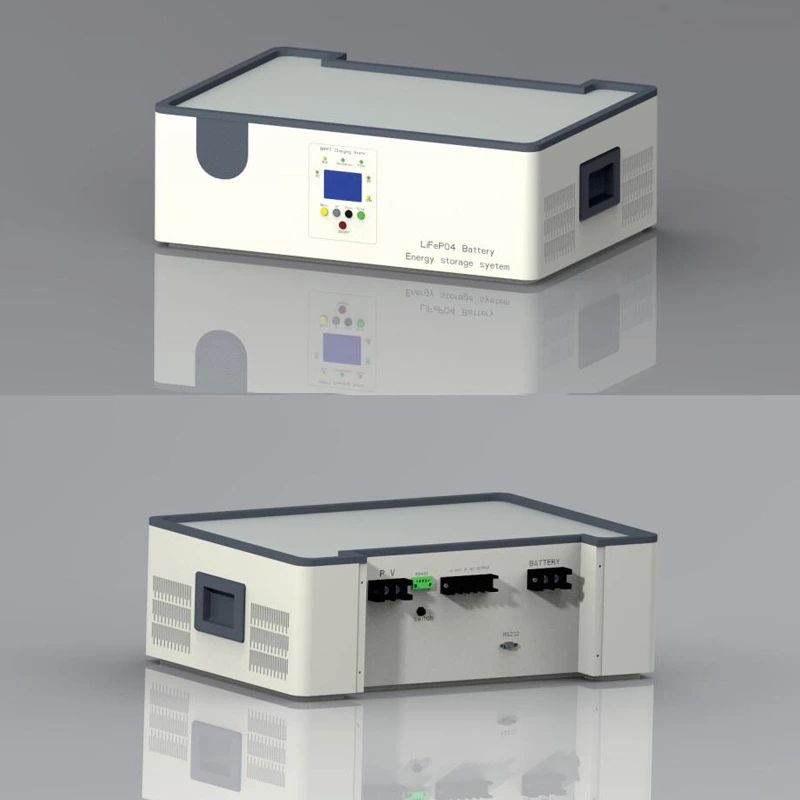

Power frequency inverter |
Power frequency inverter |
|||
|
Power |
5Kw |
10Kw |
||
|
DC Input |
DC 48V |
DC 48V |
||
|
MPPT |
DC 60-180V, 80A |
DC 60-180V, 80A*2 |
||
|
AC Input |
AC 220V, 50HZ |
AC 220V, 50HZ |
||
|
AC Output |
AC 220V, 50HZ |
AC 220V, 50HZ |
||
|
Product Size |
630*450*205MM |
|||

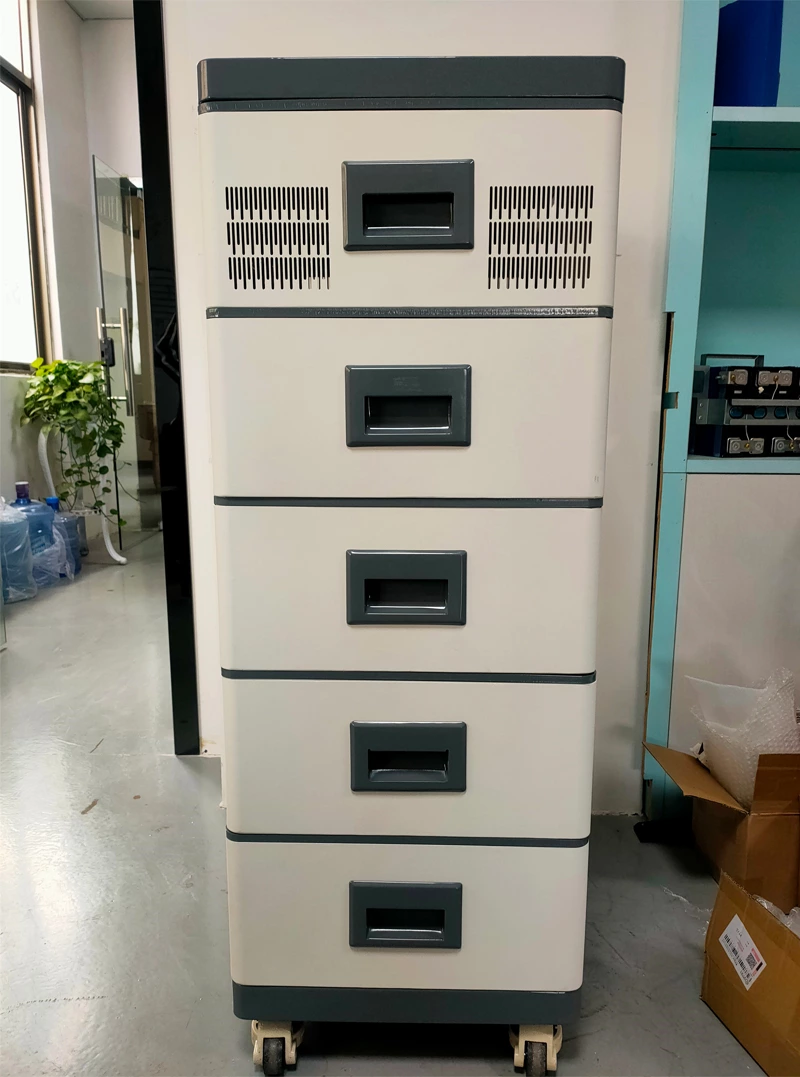

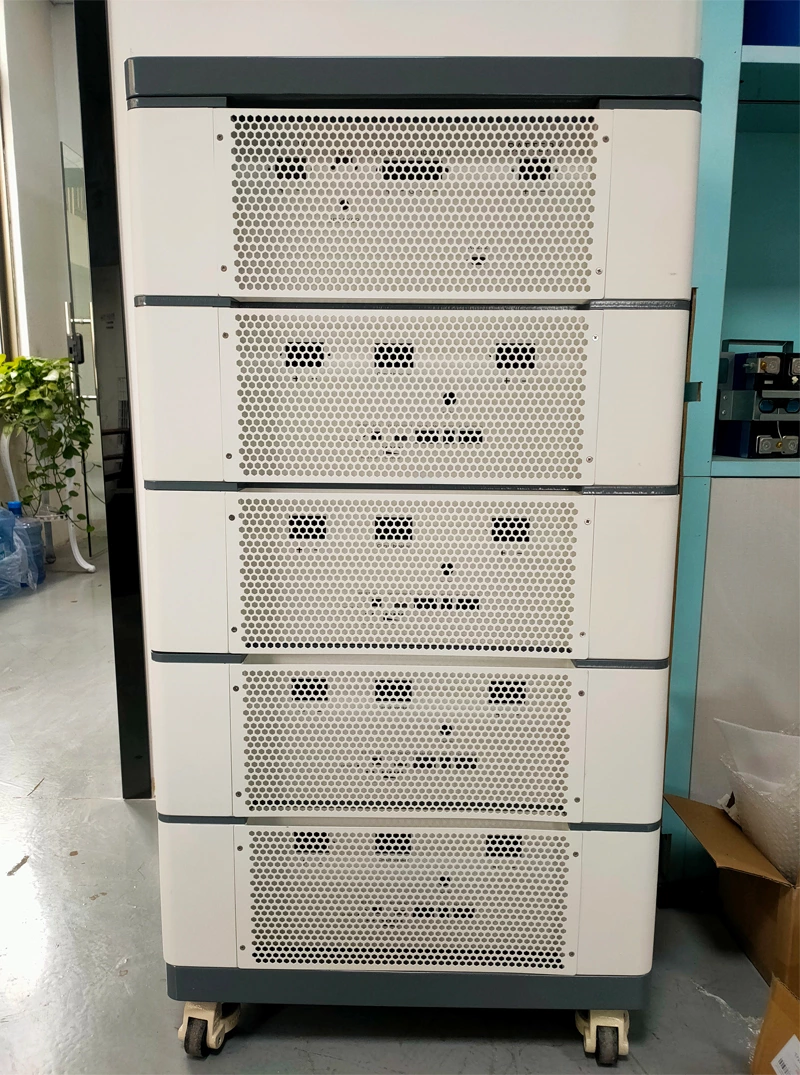

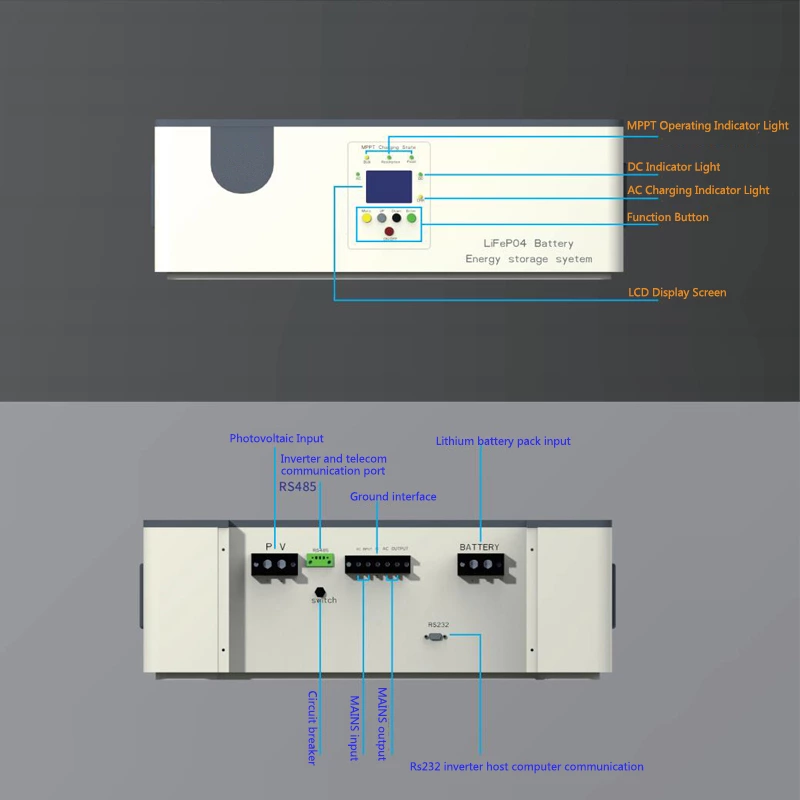

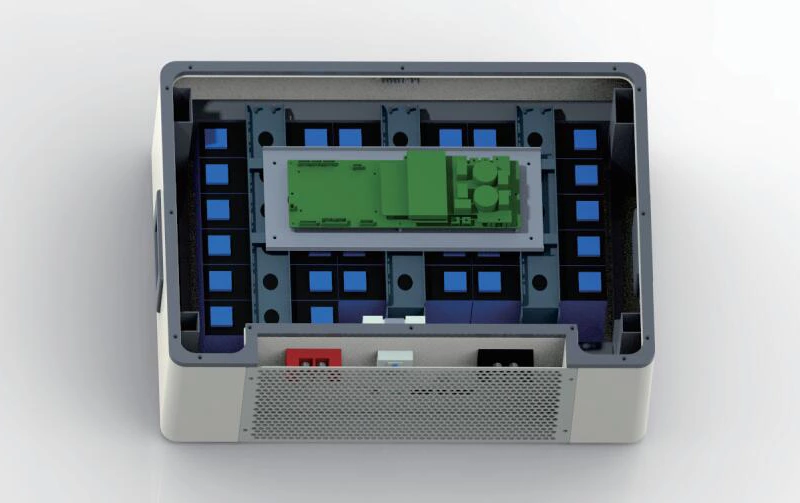

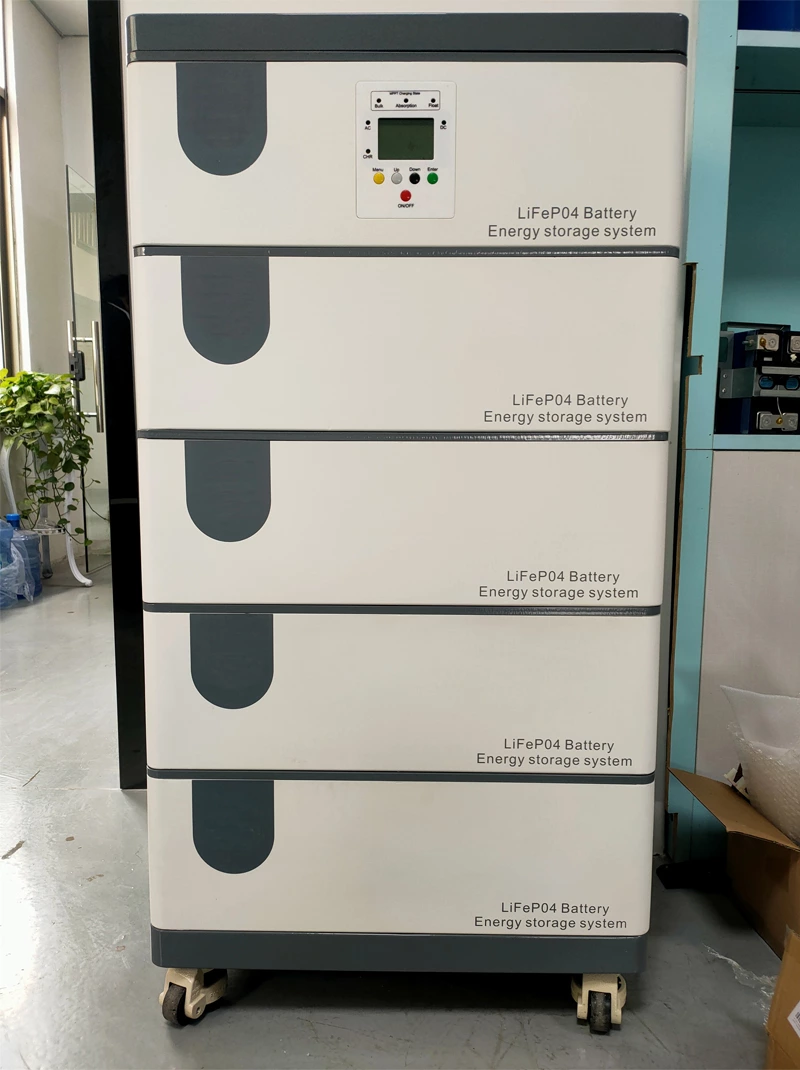

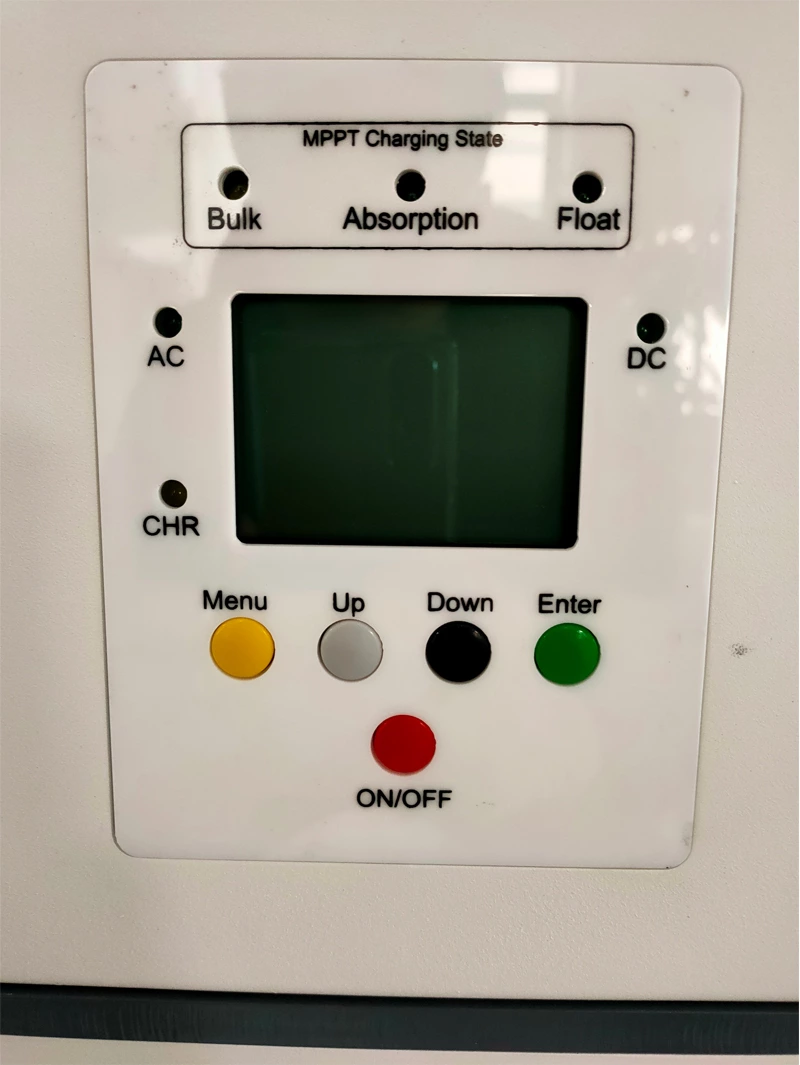

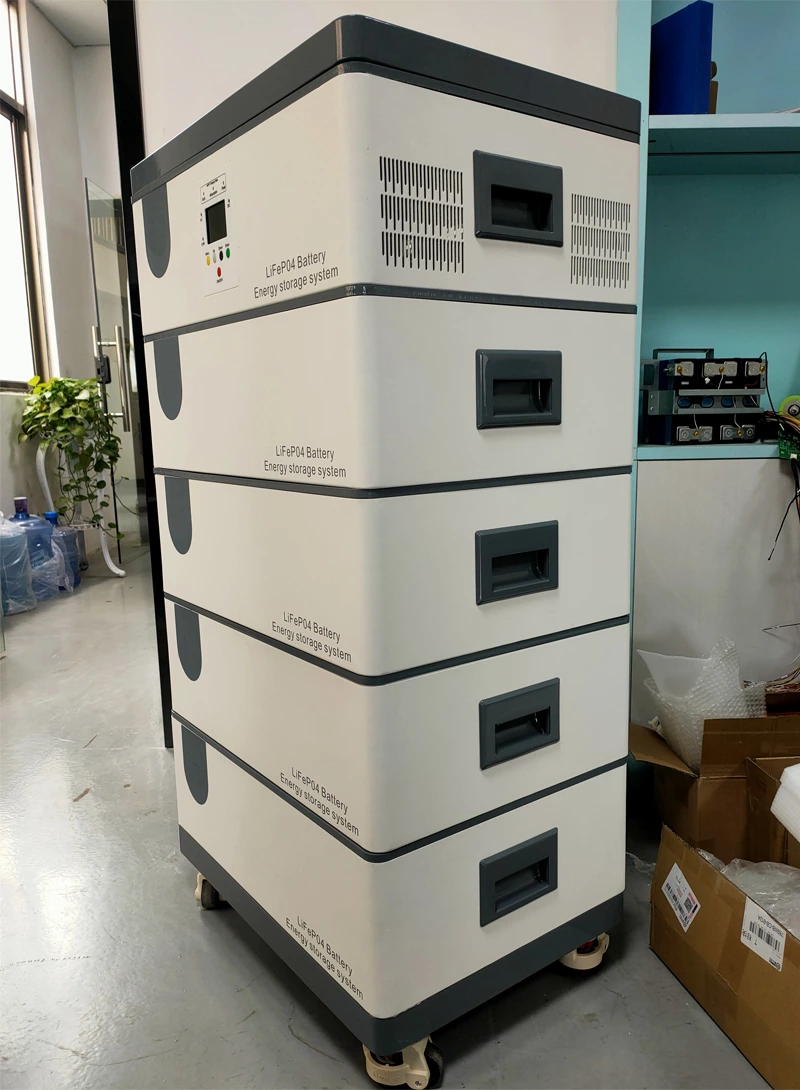

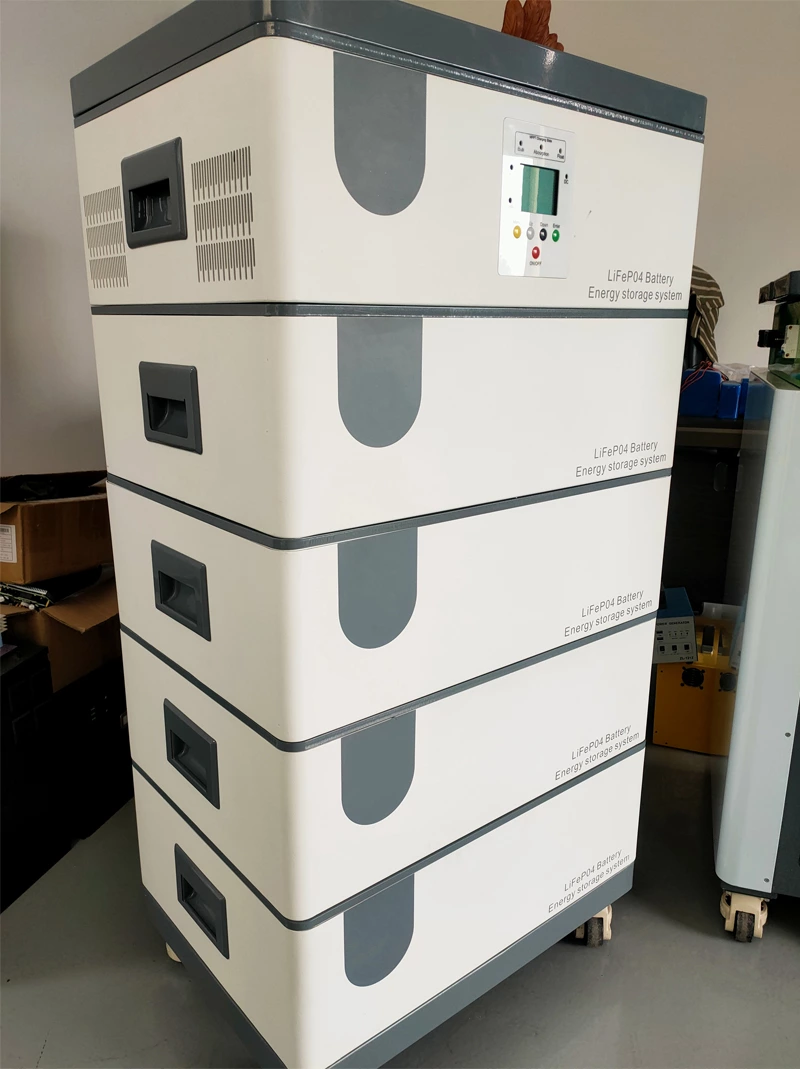

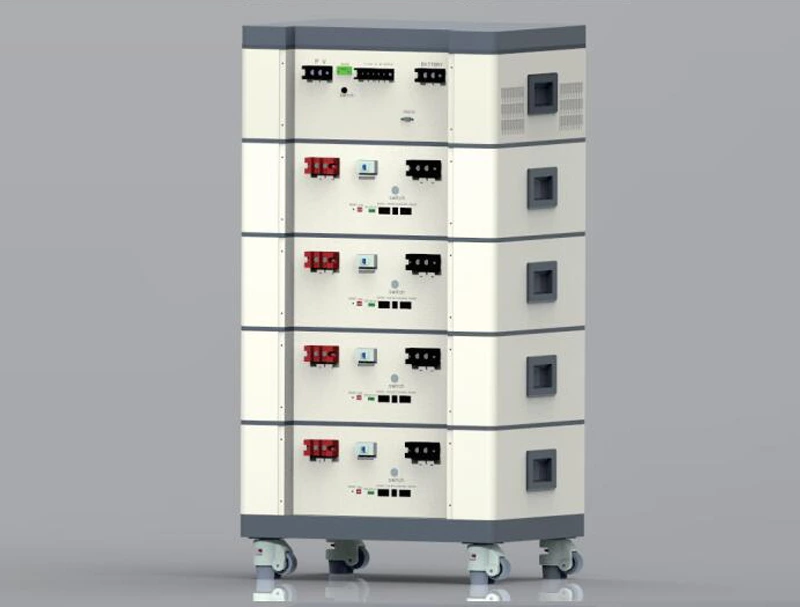

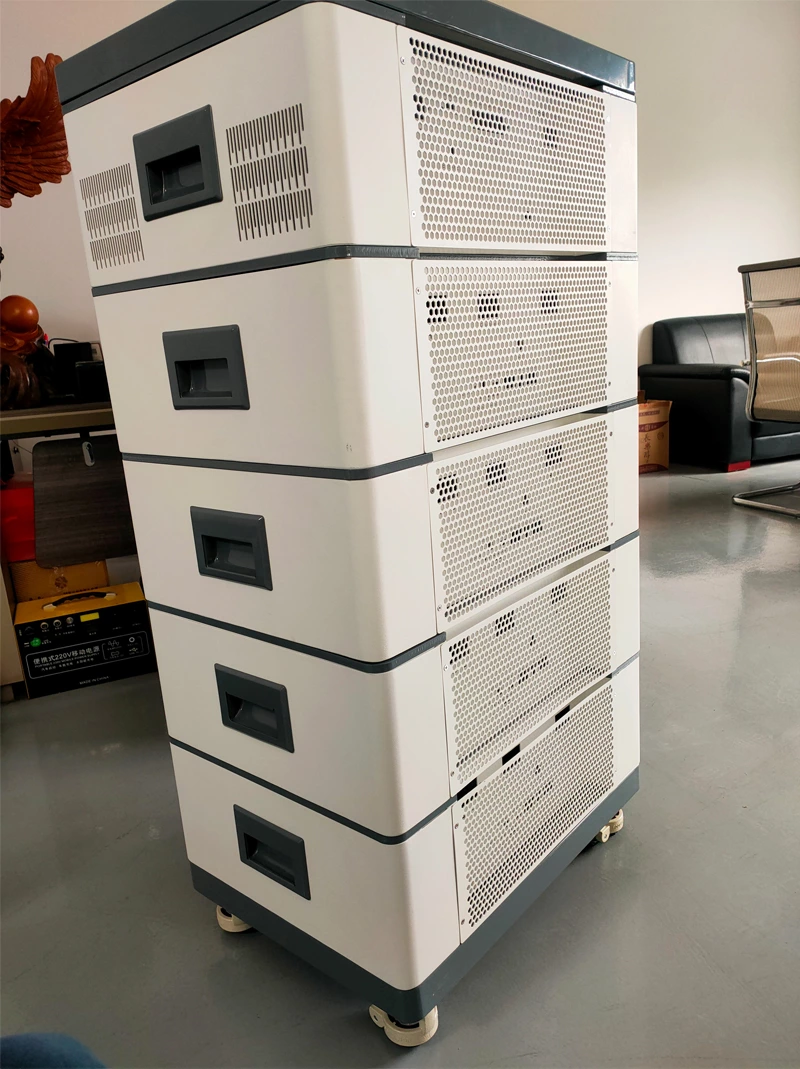

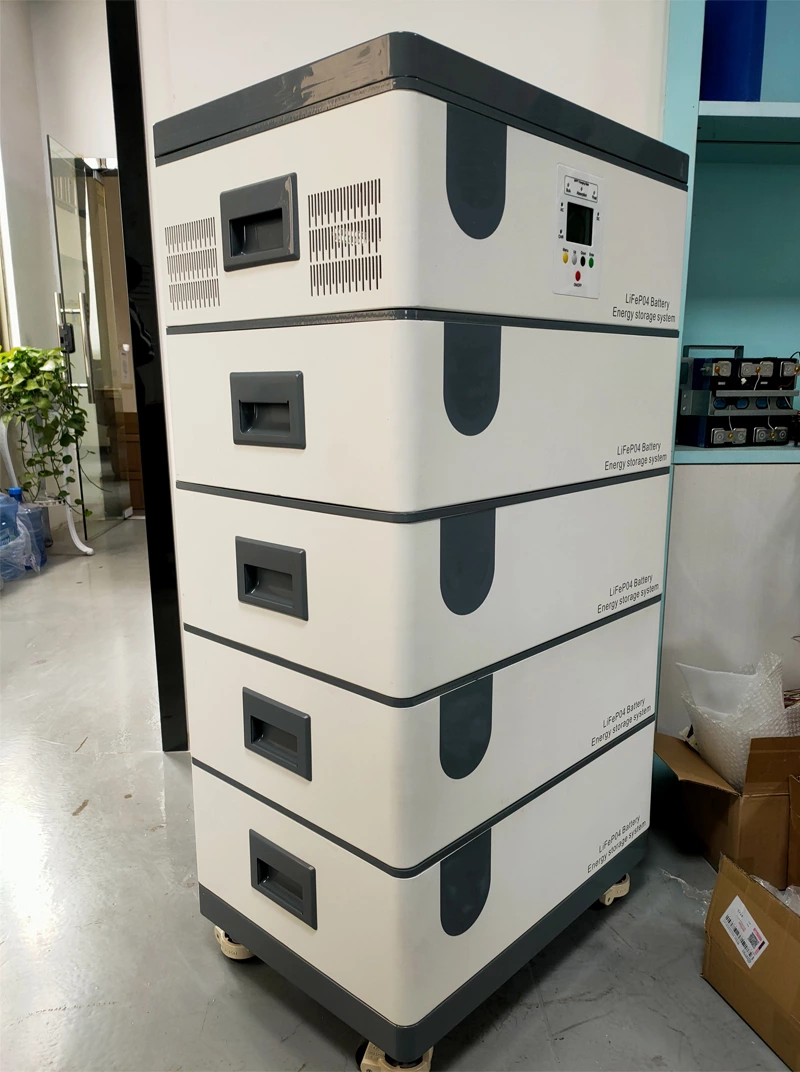

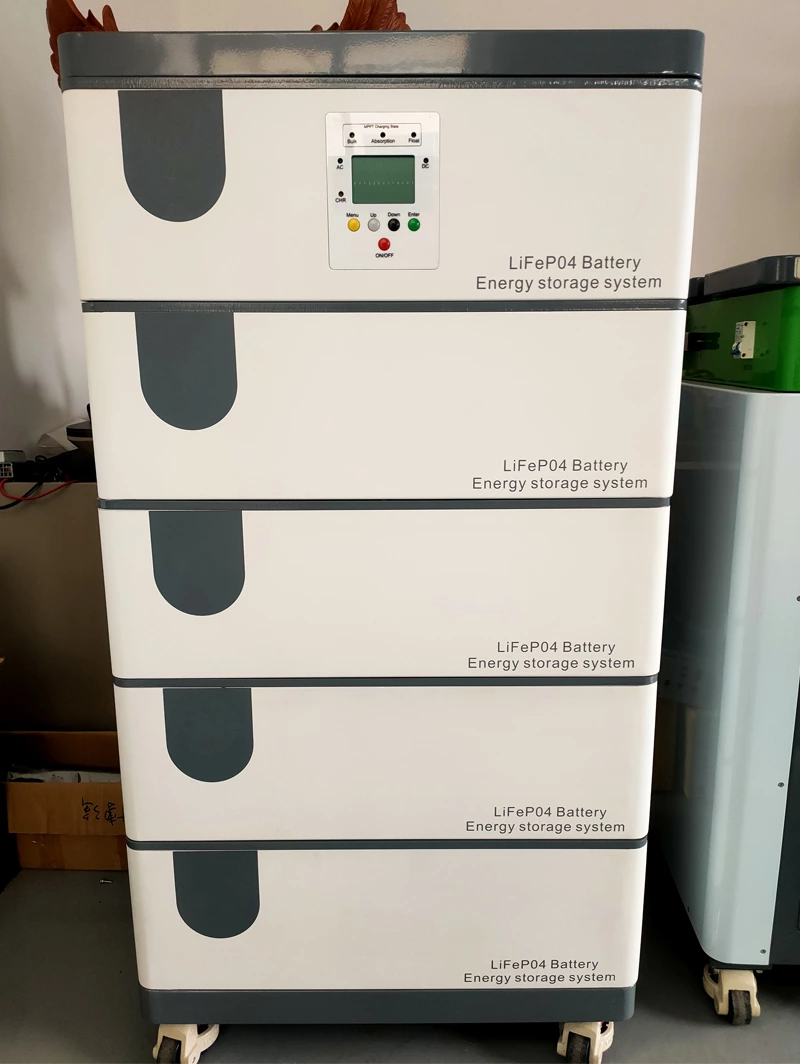

PHOTOS DISPLAY AS BELOW:
APPLICATION for:
1.Wind Power Storage
2.Solar Panel Power Storage
3.Home Energy Storage
4.RV power supply
5.Motor Thruster power supply
6.Communication Base power supply
7.Street Light power supply
8.Audio Equipment Power Supply
